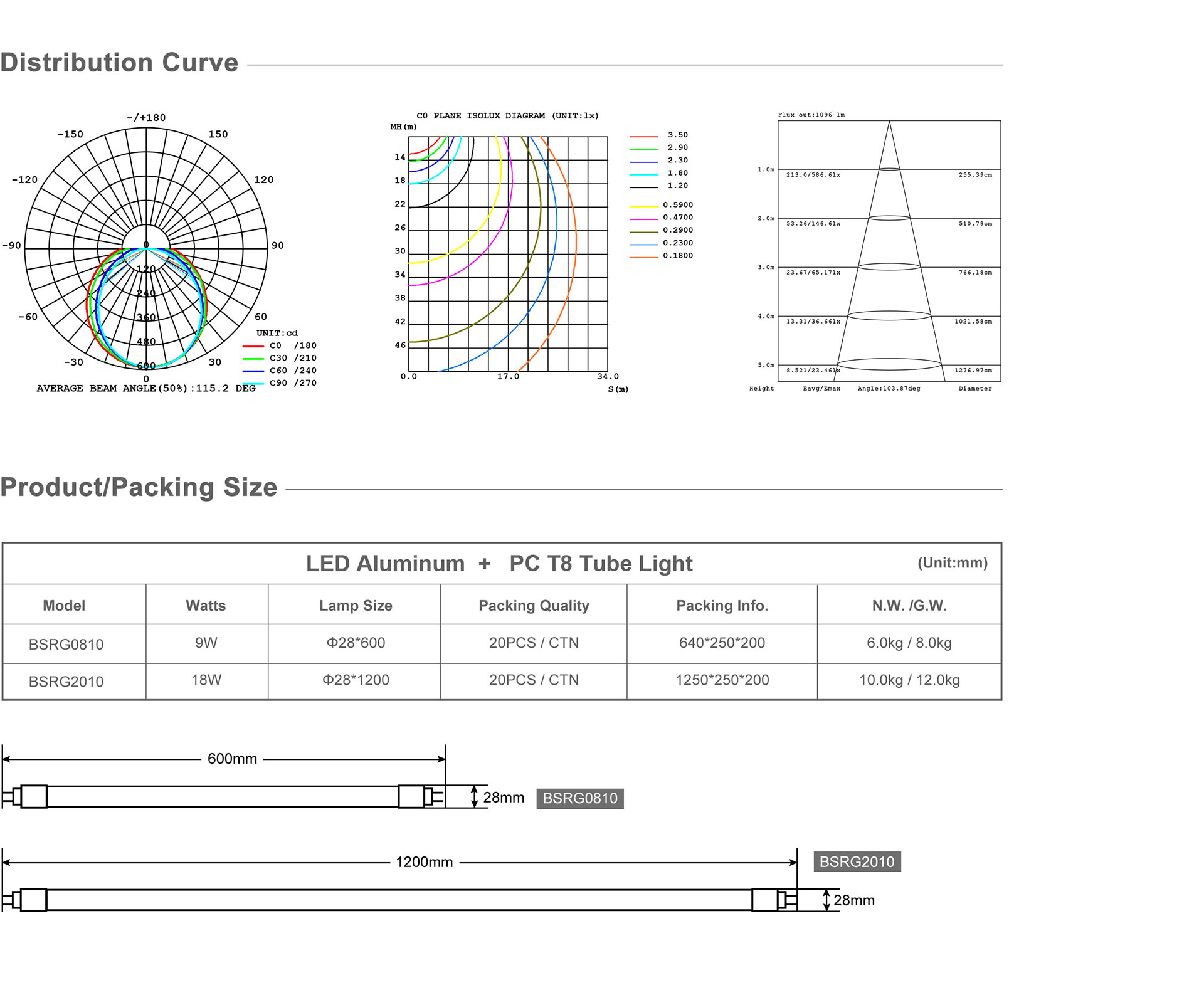

Model No. |
BSRG0810 |
BSRG2010 |
|
Nominal Wattage |
9W |
18W |
|
Input Voltage |
100-240Vac,50/60Hz |
100-240Vac,50/60Hz |
|
Operating Temperature |
-20ºC ~ 40ºC |
-20ºC ~ 40ºC |
|
Power Factor (P.F) |
>0.9 |
>0.9 |
|
Total Harmonic Distortion |
< 20% |
< 20% |
|
Lumens Output(lm) |
800-900lm |
1800lm/2200lm |
|
C.R.I |
80min |
80min |
|
C.C.T |
3000K/4000K/5000K/6000K/6500K |
3000K/4000K/5000K/6000K/6500K |
|
Rating |
IP20 |
IP20 |
|
Cover Option |
Clear / Frosted |
Clear / Frosted |
|
Beam Angle |
120° |
120° |
|
Fixture Material |
Aluminum + PC |
Aluminum + PC |
|
Warranty |
2 Years |
2 Years |

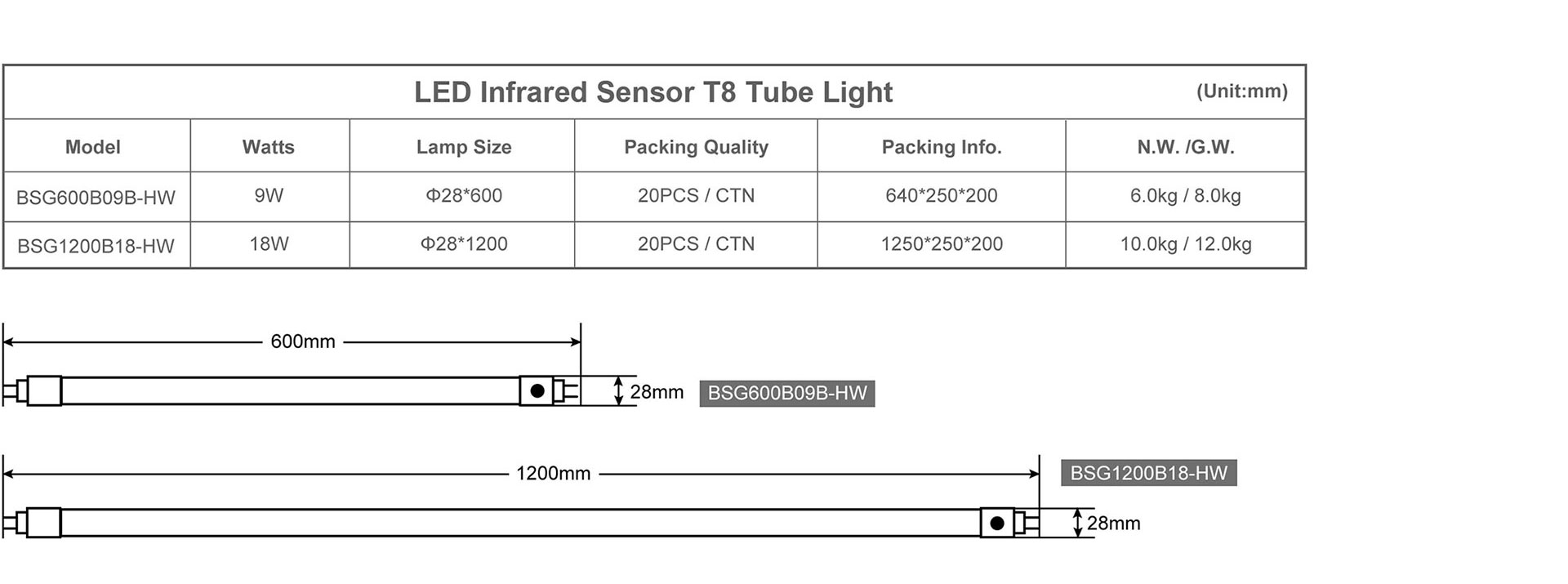

Model No.
BSG600B09B-HW
BSG1200B18-HW
Nominal Wattage
9W
18W
Input Voltage
100-240Vac,50/60Hz
100-240Vac,50/60Hz
Operating Temperature
-20ºC ~ 40ºC
-20ºC ~ 40ºC
Power Factor (P.F)
>0.9
>0.9
Lumens Output(lm)
800-900lm
>1800lm

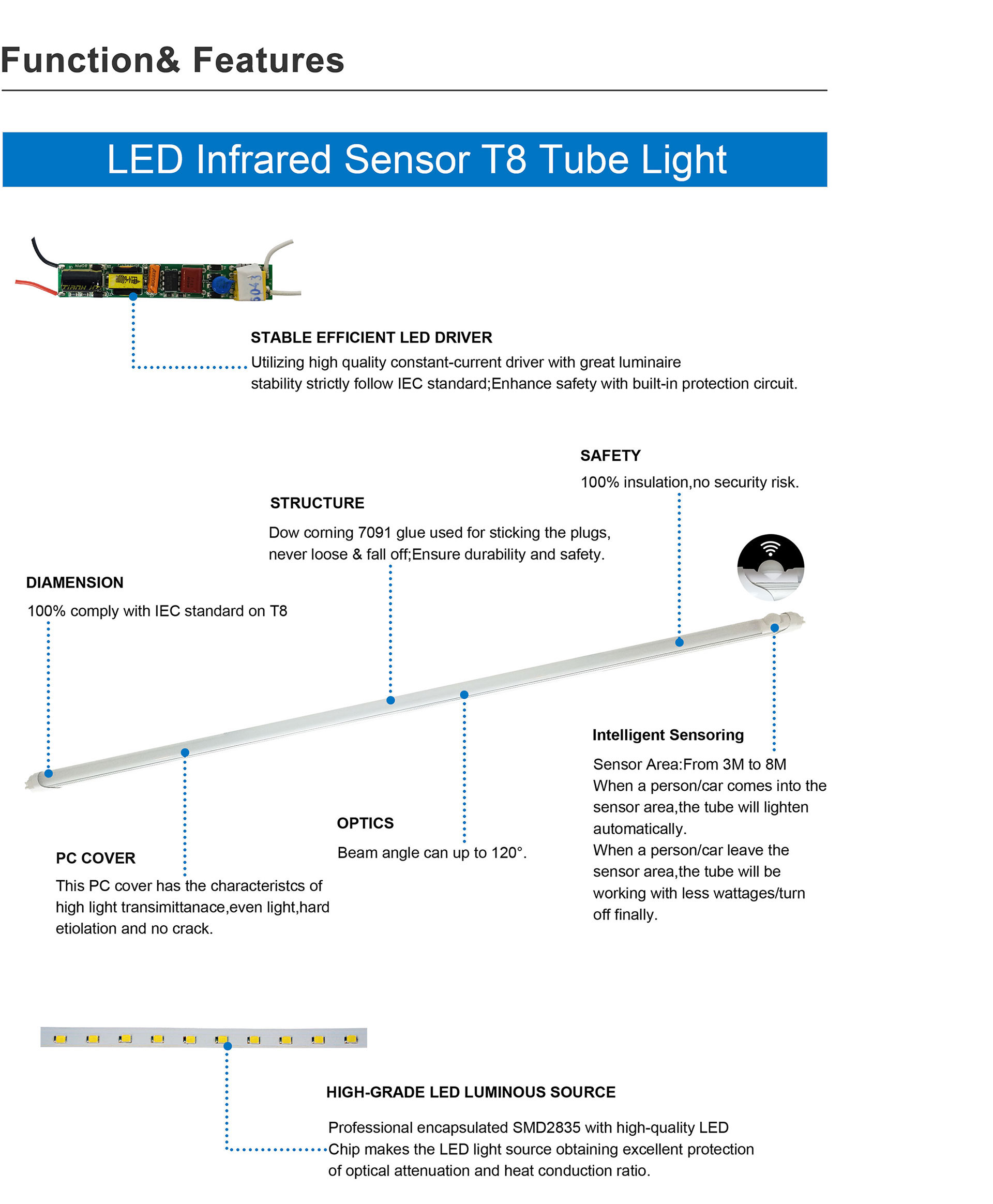

Sensing Distance
6-8M
6-8M
Delay Time
30seconds
30seconds
Dormant Power
3-5W adustable
3-5W adustable
Response Time
0.5s
0.5s
C.R.I
80min
80min
C.C.T
3000K/4000K/5000K/6000K/6500K
3000K/4000K/5000K/6000K/6500K
Rating
IP20
IP20
Cover Option
Clear / Frosted
Clear / Frosted
Beam Angle
120°
120°
Fixture Material
Aluminum + PC
Aluminum + PC
Warranty
2 Years
2 Years
