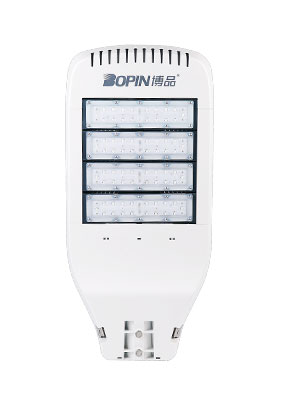

Model No. |
BSL18Z-F7W |
BSL32Z-F7W / BSL36Z-F7W |
BSL48Z-F7W / BSL54Z-F7W |
BSL64Z-F7W / BSL72Z-F7W |
|
Nominal Wattage |
60W |
100W / 120W |
150W / 180W |
200W / 240W |
|
Input Voltage |
AC100-305V 50/60Hz or DC12/24V (with controller) |
|||
|
Power Factor (P.F) |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
T.H.D |
< 20% |
< 20% |
< 20% |
< 20% |
|
Luminaire Efficacy (lm/W)
|
>120lm/W(3030 LEDs) / >150lm/W(5050LEDs) |
|||
|
C.R.I |
75±5 |
75±5 |
75±5 |
75±5 |
|
C.C.T |
3000K / 4000K / 5000K / 5700K / 6500K |
|||
|
Rating |
IP66,IK10,CLASS Ⅱ |
IP66,IK10,CLASS Ⅱ |
IP66,IK10,CLASS Ⅱ |
IP66,IK10,CLASS Ⅱ |
|
Heat Radiator |
Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
|
LED Lens |
PC (UV Resistance) |
PC (UV Resistance) |
PC (UV Resistance) |
PC (UV Resistance) |
|
LED Chips Info |
Lumileds |
Lumileds
|
Lumileds |
Lumileds |
|
Luminaire Material |
Die-casting Aluminum + PC |
Die-casting Aluminum + PC |
Die-casting Aluminum + PC |
Die-casting Aluminum + PC |
|
Module nos |
1 module |
2 modules |
3 modules |
4 modules |
|
Pole Mounting Diameter |
Suitable for ∮40-60mm Pole |
|||
|
Warranty |
5 Years |
5 Years |
5 Years |
5 Years |
|
Thermal conductivity of PCB board >2.0 |
||||
